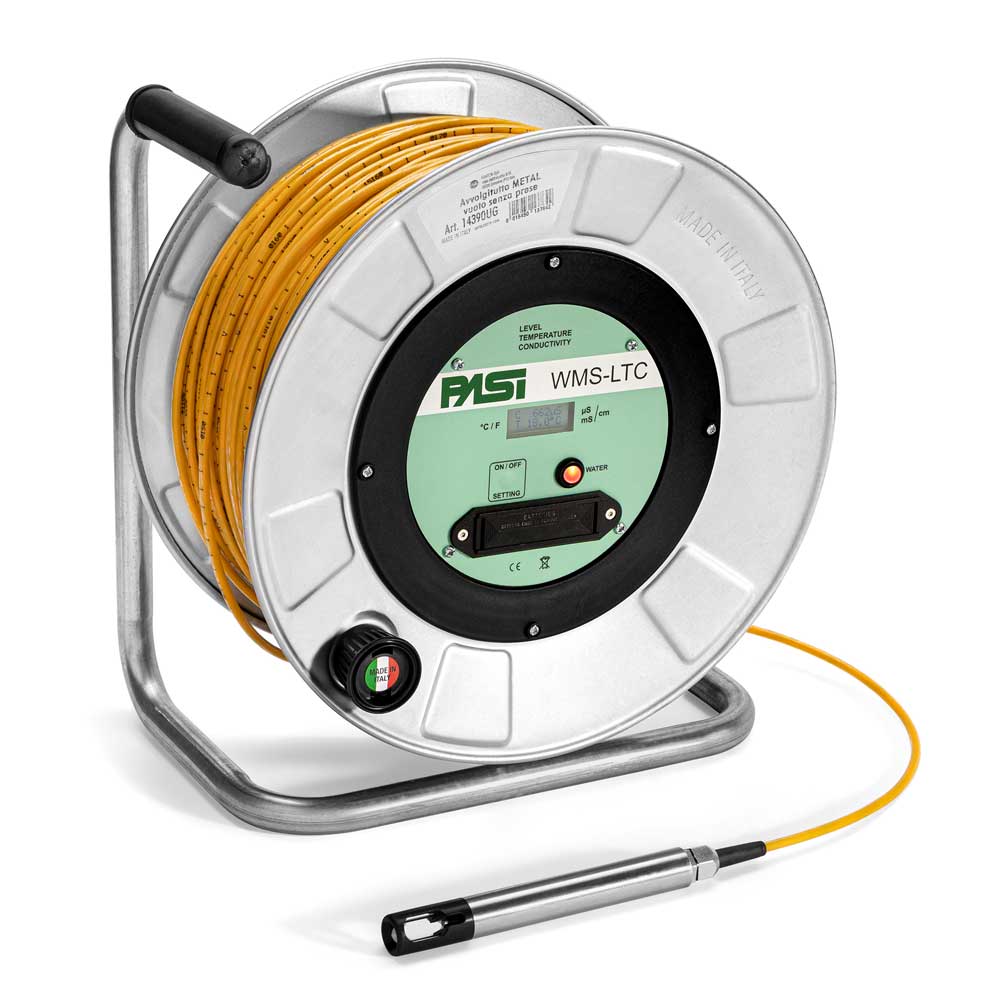

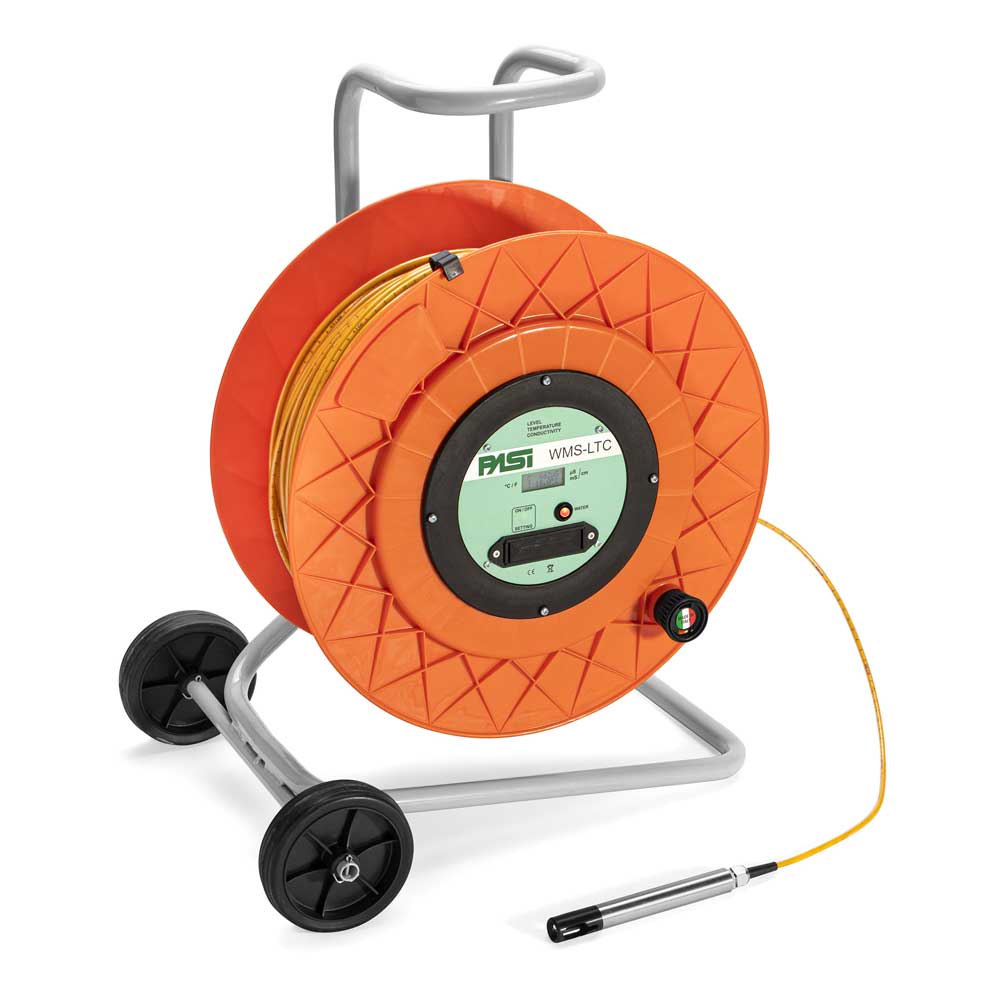

MEDIDOR DE NIVEL DE AGUA WMS-LTC

Indicador de Nivel, Temperatura y Conductividad eléctrica con cable redondo con cuatro conductores de cobre, núcleo de kevlar y película protectora exterior anti-rayaduras en PUR transparente. Graduación en cm a lo largo de toda la longitud, en color negro, con indicación metros-decímetros.
  • Longitud del cable 50 m
  • Carrete de cable de PVC
  • Dimensiones L25xP18xH35
  • Peso en Kg 2
Modelos
Metodologías

E-Commerce non attivo in questo momento



ACCESORIO    WMS-LTC

Para ser montado en la boca del pozo, facilita el descenso del cable redondeado (para indicador de nivel de agua de la Serie BFK y WMS)

Bolsa bandolera acolchada disponible en dos tamaños diferentes, adecuada para medidores de nivel de agua con 30-50-100-150 m de cable o rodillo + cabezal de cámara de 100-200 m de cable.

TECHNICAL SPECIFICATIONS
WMS-LTC



Graduation
1cm
Round cable diameter
5mm

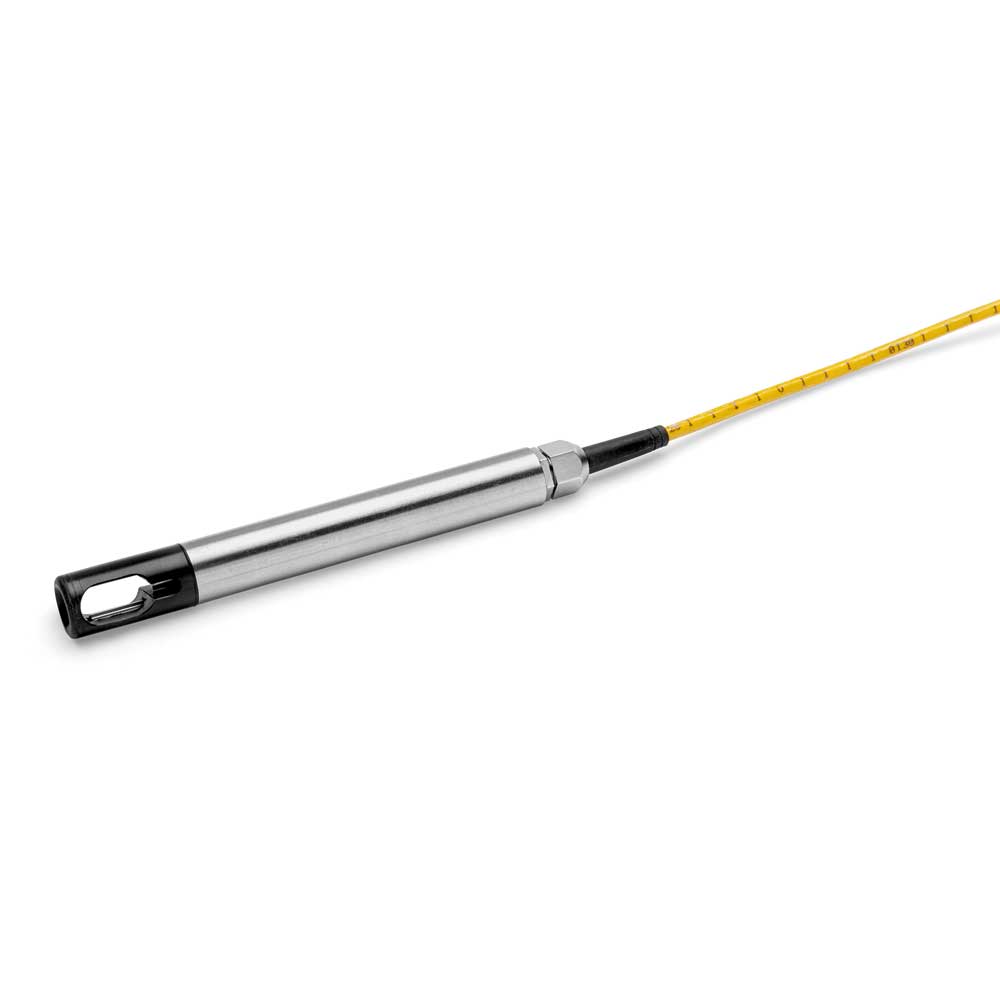

Probe diameter
23 mm, made of stainless steel with plastic protective cap
Acoustic signal and red LED indicate if the sensor is in the air or in the water (level indication)
Temperature display accuracy +/-0.2°C or +/-0.4°F, range from –10°C to +60°C or 14°F -140°F
Conductivity display range
from 40µS/cm to 80000µS/cm
Conductivity display accuracy
+/- 5% of reading up to 5000 µS/cm
+/- 10% of reading from 5000 µS/cm to 20000 µS/cm
+/- 20% of reading from 20000 µS/cm to 80000 µS/cm
Powered by 4x1.5V AA batteries, with easy external access for substitution
Available lengths: from 50 to 200m
Technical specifications subject to change without notice
Graduation
1cm
Round cable diameter
5mm
Probe diameter
23 mm, made of stainless steel with plastic protective cap
Acoustic signal and red LED indicate if the sensor is in the air or in the water (level indication)
Temperature display accuracy +/-0.2°C or +/-0.4°F, range from –10°C to +60°C or 14°F -140°F
Conductivity display range
from 40µS/cm a 80000µS/cm< /div>
Conductivity display accuracy
+/- 5% of reading up to 5000 µS/cm
+/- 10% of reading from 5000 µS/cm to 20000 µS/cm
+/- 20% of reading from 20000 µS/cm to 80000 µS/cm
Powered by 4x1.5V AA batteries, with easy external access for substitution
Available lengths: from 50 to 200m
Technical specifications subject to change without notice
