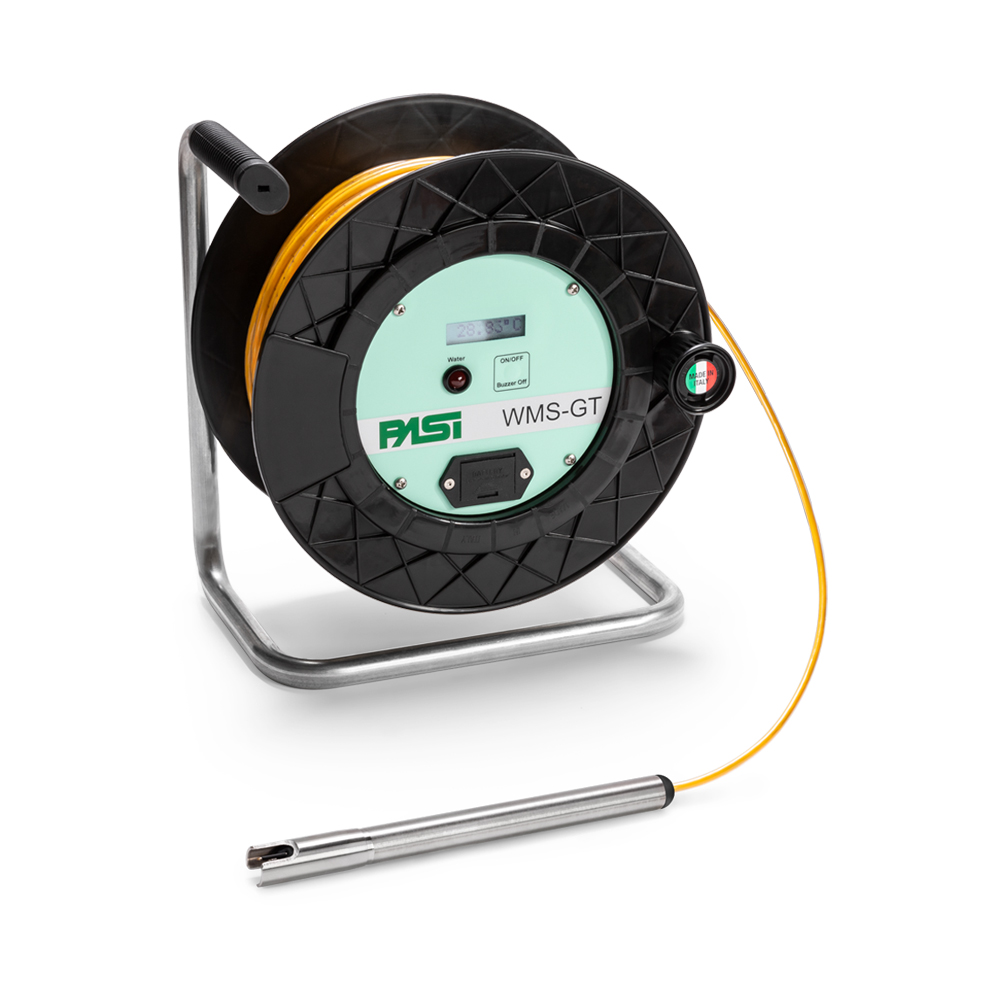

CAPTEUR DE NIVEAU D'EAU WMS-GT

AVEC CAPTEUR DE TEMPÉRATURE DE HAUTE PRÉCISION POUR ÉTUDES GÉOTHERMIQUES

Indicateur de niveau d’eau avec détecteur de température de très haute précision (également indiqué pour des applications de géothermie); câble rond avec quatre conducteurs en cuivre, noyau en kevlar et gaine extérieure de protection anti-rayures en PUR transparent. Graduation en cm sur toute la longueur en couleur noire avec indication mètres-décimètres.
Capteur de température numérique de haute précision : résolution 0,01°C; précision ± 0.1°C de -20°C à 50°C, ± 0.15°C de -20°C à +70°C, ± 0.2°C de -20°C à +100°C, ± 0.25°C de -20°C à +125°C.

  • Longueur du câble 30m
  • Enrouleur de câble en PVC
  • Dimensions L25xP18xH35
  • Poids en kg 1,8
Modèles
Methodologies

E-Commerce non attivo in questo momento



ACCESSOIRES WMS-GT

Avec pince pour la fixation à la bouche du puits, suspend la tête de caméra à une distance réglable de la paroi du puits.
Sac à bandoulière rembourré-disponible en deux formats différents, pour capteur de niveau d'eau avec 30-50-100-150m de câble au rouleau de Well-Camera avec 100-200m de câble.
TECHNICAL
SPECIFICATIONS
WMS-GT



Graduation
1cm
Round cable diameter
5mm

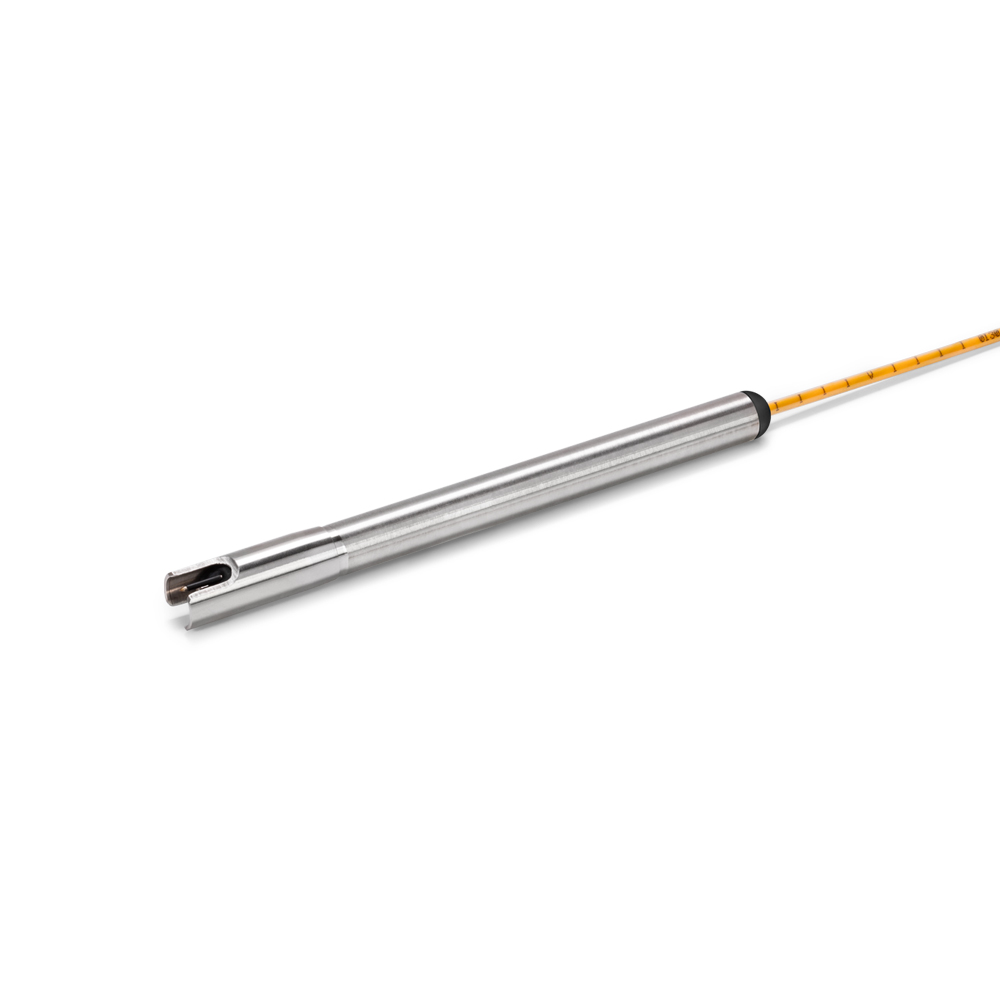

Probe diameter and material
16mm - body in stainless steel; head and cable stop in high-temperature-resistant polymer resin
Probe length
190mm for WMS-GT-30/50/100; 240mm for WMS-GT 200/300/400/500
User Interface

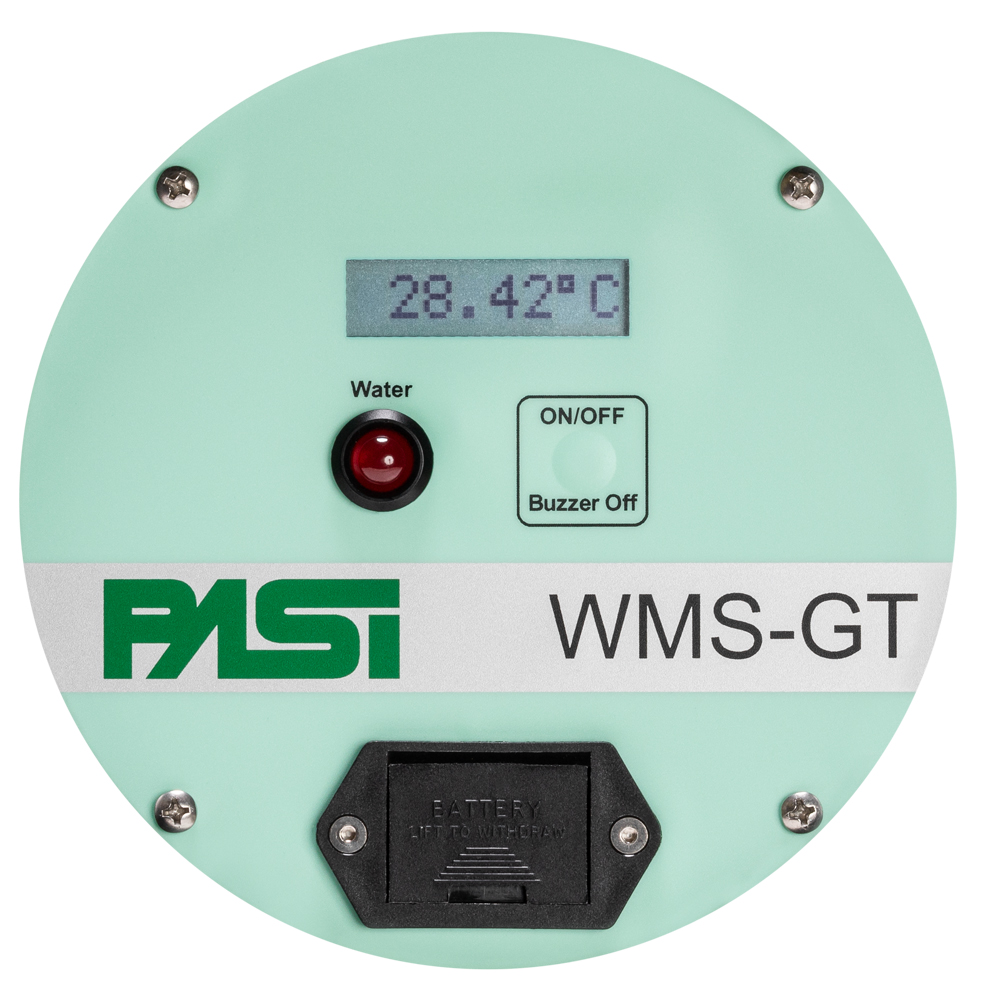

8-character temperature display indication, acoustic signal and LED water level indication, button for power on, power off and instrument settings
Operating temperature
-20°C + 110°C
Temperature sensor
High precision digital sensor: resolution 0.01°C; precision ± 0.1°C from -20°C to 50°C, ± 0.15°C from -20°C to +70°C, ± 0.2°C from -20°C to +100°C, ± 0.25°C from -20°C to +125°C
Powered by 1x9V battery (with easy external access for substitution)
Technical specifications subject to change without notice
Graduation
1cm
Round cable diameter
5mm
Probe diameter
19mm, body and temperature sensor protective cap made in stainless steel; head and cable stop in photopolymer resin
Probe length
220mm
User Interface
8-character temperature display indication, acoustic signal and LED water level indication, button for power on, power off and instrument settings
Operating temperature
-20°C +60°C
Temperature sensor
High precision digital sensor. Resolution 0.01°C, precision ± 0.1°C from -20°C to 50°C, ± 0.15°C from -40°C to +70°C.
Powered by 1x9V battery (with easy external access for substitution)
Technical specifications subject to change without notice
